Motherboard Asus Prime X670-P WiFi DDR5 Socket AM5

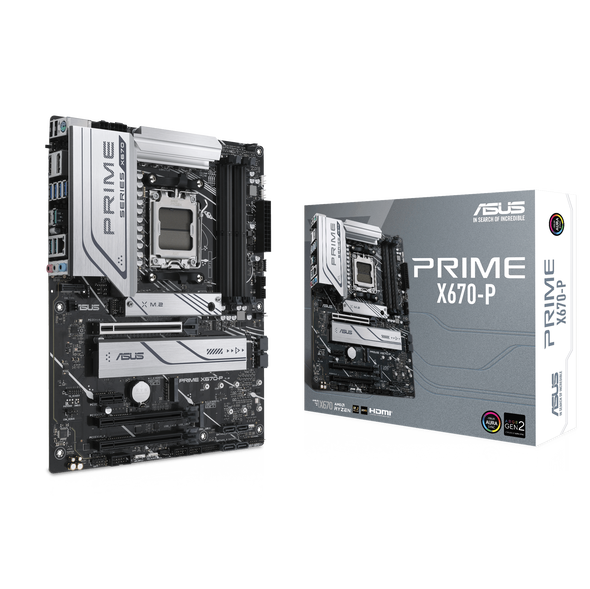

Asus Prime X670-P WiFi Motherboard

Asus PRIME X670-P WIFI is a rather curious ATX motherboard, which stands out from most of its Prime series brethren due to the use of advanced system logic, a solid power supply system and a wide range of auxiliary functions. It is based on the top AMD X670 chipset, equipped with AMD AM5 socket, designed to work exclusively with Ryzen 7000 and 8000 series processors, which are based on the brand new Zen 4 microarchitecture presented in 2022.

The board combines a powerful 16-phase power system, efficient cooling of key elements, smart cooling system AI Cooling II and support for AMD Precision Boost Overdrive technology, which is able to overclock Ryzen processors to the limit using aggressive power settings. The manufacturer positions it as a near top-tier model that can become a solid and reliable foundation for a gaming or work PC with a 6/8/12-core processor, a high-performance GeForce RTX 4070/Radeon RX 7800 XT graphics card, a large amount of fast RAM and several reactive M.2 SSD drives.

A digital 17-phase cascade system with a high-quality element base is responsible for powering all elements, PCI-E slots are reinforced with reinforced fiber, and M.2 ports are covered with heatsinks designed to prevent the memory controller from heating up when using the PCI-E 4.0 bus. Among its other features should be emphasized support for high-speed PCI-E 5.0 interface and the ability to work with the new generation of DDR5 RAM.

In particular, the manufacturer indicates the ability to install up to 192 GB of DDR5 RAM with a maximum clock speed of 6400 MHz and up to three M.2 SSD-drives with support for different versions of the PCI-E interface (1x5.0, 2x4.0). A 2.5-gigabit LAN controller from Realtek is responsible for network traffic processing. Also on board there is a wireless receiver with support for Wi-Fi 6E and Bluetooth 5.2.
